3044539 | Phoenix Contact
Protective conductor terminal, screw connection, 0.14-4.0 mm², 3 pole, 6 kV, yellow/green, 3044539
Unit Price (€ / pc.)
4.7481 € *
Available in 5 Days: 139 pcs. - if ordered today

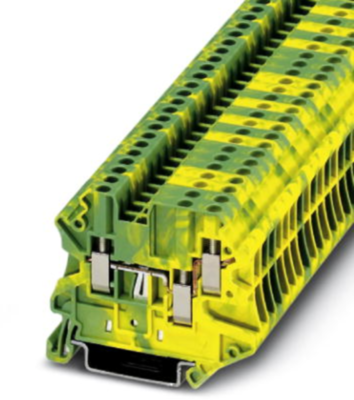

Ground modular terminal block, 3044539, Phoenix Contact
Ground modular terminal block, connection method: Screw connection, number of connections: 3, cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, width: 5.2 mm, height: 46.9 mm, color: green-yellow, mounting type: NS 35/7,5, NS 35/15
Features
- The consistent double function shaft offers every opportunity for time-saving potential distribution and accommodating test accessories
- User-friendly implementation of all potential branching tasks
- Tested for railway applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Number of terminals | 3 | |
| AWG cross-section | AWG 26 to 12 | |
| Colour | yellow/green | |
| Connection | screw connection | |
| Cable cross-section | 0.14-4.0 mm² | |
| Width | 5.2 mm | |
| Height | 47.5 mm | |
| Rated surge voltage | 6 kV | |
| Version | protective conductor terminal | |
| Pin number | 3 pole | |
| Length | 57.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
