3036136 | Phoenix Contact

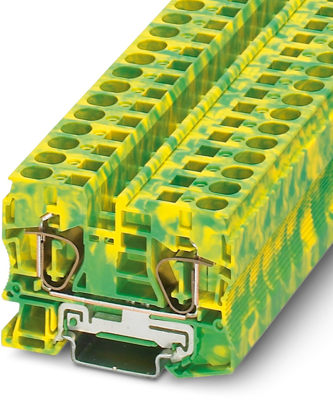

Protective conductor terminal, spring balancer connection, 0.2-16 mm², 2 pole, 65 A, 8 kV, yellow/green, 3036136

Order No.: 09H9088
EAN: 4017918819095
MPN:
3036136
ST 10-PE
Series: ST
Phoenix Contact
default L
Image may differ
Unit Price (€ / pc.)
5.8786 € *
Available: 48 pcs.
Leadtime: On Request **
Total Price:
5.88 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.8786 €

Terminal blocks for TS 35 mounting rails, type Phoenix Contact CLIPLINE complete.

Uniform accessories for all wiring technologies. The terminal blocks of the CLIPLINE system can be combined as required. push-in terminal technology PIT for direct insertion of solid and flexible conductors with wire end ferrule as of 0.34 mm². Screw terminal technology UT for wiring multiple conductors and maximum contact forces. Cage clamp technology ST for vibration-sensitive applications. Quick terminating technology QT for reducing wiring times up to 60 %, as the conductor does not have to be stripped. The marked terminal blocks are approved for applications in potentially explosive areas; Insulation material: polyamide 6.6. Inflammability class UL 94 V-0.

Terminal blocks for TS 35 mounting rail, type CLIPLINE ST.

Spring clamp connection; Terminating cross-section solid/flexible: ST 1.5 = 0.08 to 1.5 mm²/0.08 to 1.5 mm², ST 2.5 = 0.08 to 4.0 mm²/0.08 to 2.5 mm², ST 4 = 0.08 to 6.0 mm²/0.08 to 4.0 mm², ST 6 = 0.2 to 10 mm²/0.2 to 6.0 mm², ST 10 = 1.5 to 16 mm²/0.2 to 10 mm². Rated surge voltage: 8.0 kV (type ST 1.5 6.0 kV). Degree of soiling: 3. Overvoltage category: III. Insulation class: I. Connection to IEC/EN standard. Rated voltage: 800 V (type ST 1.5 = 500 V). Dimensions: ST 1.5 and ST 2.5 = L 48.5 mm/H 36.5 mm, ST 4 = L 56.0 mm/H 36.5 mm, ST 6 = L 69.5 mm/H 43.5 mm, ST 10 = L 71.5 mm/H 50.5 mm.

PE ground terminals, type ST.

Technical attributes (type, rated current, terminal width (B), color): ST 10-PE, 65 A, B 10.2 mm, green-yellow

Technical specifications
Connection spring balancer connection
Number of terminals 2
Version protective conductor terminal
AWG cross-section AWG 24 to 6
Rated surge voltage 8 kV
Width 10.2 mm
Colour yellow/green
Height 50.3 mm
Length 71.5 mm
Cable cross-section 0.2-16 mm²
Rated current 65 A
Pin number 2 pole
Degree of soiling 3
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
