3002371 | Phoenix Contact

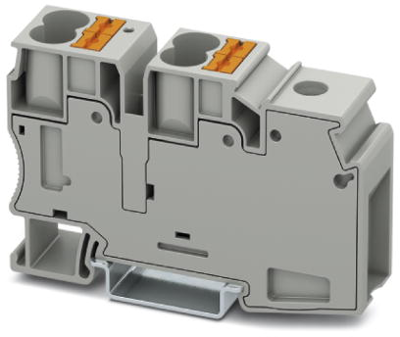

Potential collective terminal, 3002371, Phoenix Contact

Potential collective terminal, In the end application, the applicable safety regulations for overload and short-circuit protection on the connected conductors must be considered., nom. voltage: 1000 V, nominal current: 101 A, connection method: Screw connection, Push-in connection, number of connections: 5, cross section: 1.5 mm² - 50 mm², AWG: 8 - 2, width: 19.4 mm, color: gray, mounting type: NS 35/7,5, NS 35/15

Features

• The terminal block base is ideal for use in building installation and machine building applications
• The compact design and front connection enable wiring in a confined space
• The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
• In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
