2776044 | Phoenix Contact
Knife disconnect terminal, screw connection, 0.2-6.0 mm², 4 pole, 16 A, 8 kV, gray, 2776044
Unit Price (€ / pc.)
7.8064 € *
Available: 0 pcs.
Available in 10 days: 951 pcs.
Leadtime: 2 Weeks **

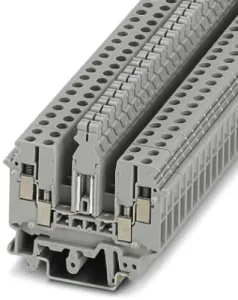

Knife disconnect terminal block, 2776044, Phoenix Contact
Knife disconnect terminal block, with test socket screws for insertion of Test plug, rated voltage: 630 V, nominal current: 16 A, 1 level, connection method: Screw connection, Rated cross section: 4 mm², cross section: 0.2 mm² - 6 mm², mounting: NS 35/7,5, NS 35/15, NS 32, color: gray.
Features
- Space-saving design just 6.2 mm wide
- Closed housing of double-level terminal blocks
- User-friendly disconnect knife operation
Technical specifications
| Version | knife disconnect terminal | |
| Number of terminals | 4 | |
| Pin number | 4 pole | |
| Cable cross-section | 0.2-6.0 mm² | |
| AWG cross-section | AWG 24 to 10 | |
| Rated surge voltage | 8 kV | |
| Rated current | 16 A | |
| Rated Voltage | 630 V | |
| Degree of soiling | 3 | |
| Length | 63.5 mm | |
| Width | 6.2 mm | |
| Height | 47 mm | |
| Connection | screw connection | |
| Colour | gray |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
