2775485 | Phoenix Contact

Double level terminal, screw connection, 0.5-16 mm², 6 pole, 57 A, 6 kV, gray, 2775485

Order No.: 60P5401
EAN: 4017918068592
MPN:
2775485
UKKB 10/2,5-PV
Series: UKKB
2775485 Phoenix Contact Series Terminals

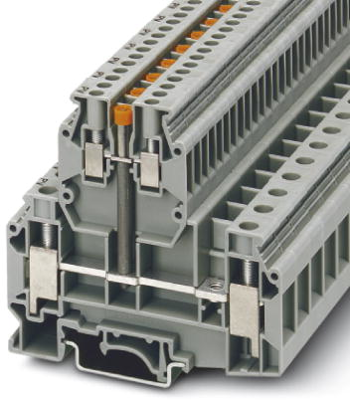

Image may differ
Unit Price (€ / pc.)
20.5394 € *
Available in 10 days: 69 pcs. - if ordered today
Total Price:
20.54 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
20.5394 €

Double level terminal block, 2775485, Phoenix Contact

Double-level terminal block, with equipotential bonder, rated voltage: 500 V, nominal current: 57 A, connection method: Screw connection, Rated cross section: 10 mm², cross section: 0.5 mm² - 16 mm², connection method: Screw connection, 2nd level, Rated cross section: 2.5 mm², cross section: 0.2 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray.

Features

  • Design width of just 10.2 mm
Technical specifications
Filter Property Value
Version double level terminal
Number of terminals 6
Pin number 6 pole
Cable cross-section 0.5-16 mm²
AWG cross-section AWG 20 to 6
Rated surge voltage 6 kV
Rated current 57 A
Rated Voltage 500 V
Degree of soiling 3
Length 77.5 mm
Width 10.2 mm
Height 73 mm
Connection screw connection
Colour gray
Logistics
Property Value
Customs tariff number 85369010
Country of origin TR
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
