1741338 | Phoenix Contact
Through terminal block
Unit Price (€ / pc.)
2.1990 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
2.20 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1990 €
10 pcs.
2.0419 €
50 pcs.
1.9058 €
100 pcs.
1.7867 €
*incl. VAT plus shipping costs
Subject to prior sale

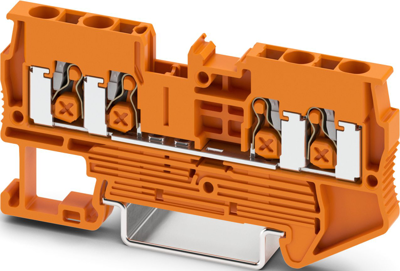

Feed-through terminal block, 1741338, Phoenix Contact
Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, number of connections: 4, number of positions: 1, connection method: Push-X-connection, Rated cross section: 2.5 mm², cross section: 0.5 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: orange.
Features
- In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
- The compact design and front connection enable wiring in a confined space
- Tested for railway applications
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
