1462717 | Phoenix Contact
Knife disconnect terminal, push-X connection, 0.5-4.0 mm², 2 pole, 20 A, 6 kV, blue, 1462717
Unit Price (€ / pc.)
3.9389 € *
Available in 5 Days: 25 pcs. - if ordered today
Total Price:
3.94 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9389 €
10 pcs.
3.6533 €
50 pcs.
3.4153 €
100 pcs.
3.2011 €
*incl. VAT plus shipping costs
Subject to prior sale

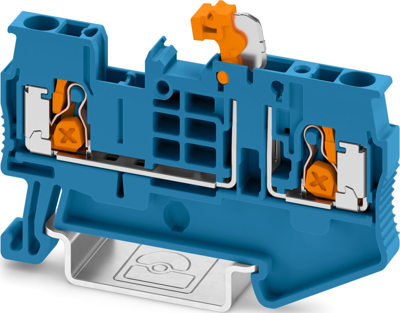

Knife-disconnect terminal block, 1462717, Phoenix Contact
Knife-disconnect terminal block, nom. voltage: 500 V, nominal current: 20 A, connection method: Push-X-connection, Rated cross section: 2.5 mm², cross section: 0.5 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, color: blue.
Features
- In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | blue | |
| Width | 5.2 mm | |
| Connection | push-X connection | |
| Degree of soiling | 3 | |
| AWG cross-section | AWG 20 to 12 | |
| Pin number | 2 pole | |
| Rated Voltage | 500 V | |
| Version | knife disconnect terminal | |
| Cable cross-section | 0.5-4.0 mm² | |
| Height | 61.9 mm | |
| Length | 36.9 mm | |
| Rated current | 20 A | |
| Rated surge voltage | 6 kV |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
