1322453 | Phoenix Contact
Through terminal block, push-in connection, 0.5-16 mm², 2 pole, 57 A, 8 kV, black, 1322453
Unit Price (€ / pc.)
2.7741 € *
Available in 5 Days: 1,097 pcs. - if ordered today
Total Price:
2.77 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7741 €
10 pcs.
2.5759 €
50 pcs.
2.4042 €
100 pcs.
2.2539 €
*incl. VAT plus shipping costs
Subject to prior sale

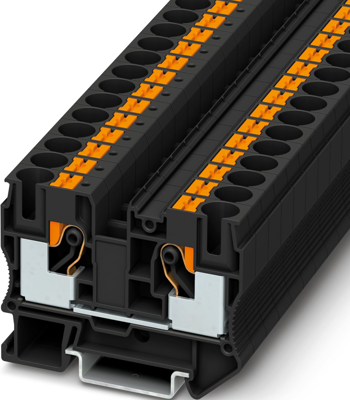

Feed-through terminal block, 1322453, Phoenix Contact
Feed-through terminal block, nom. voltage: 1000 V, nominal current: 57 A, number of connections: 2, connection method: Push-in connection, Rated cross section: 10 mm², cross section: 0.5 mm² - 16 mm², mounting type: NS 35/7,5, NS 35/15, color: black.
Features
- The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
- The compact design and front connection enable wiring in a confined space
- In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
- Tested for railway applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of soiling | 3 | |
| Rated current | 57 A | |
| AWG cross-section | AWG 20-6 | |
| Rated surge voltage | 8 kV | |
| Length | 67.7 mm | |
| Width | 10.2 mm | |
| Version | through terminal block | |
| Connection | push-in connection | |
| Pin number | 2 pole | |
| Rated Voltage | 1000 V | |
| Height | 49.5 mm | |
| Colour | black | |
| Cable cross-section | 0.5-16 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
