1091675 | Phoenix Contact

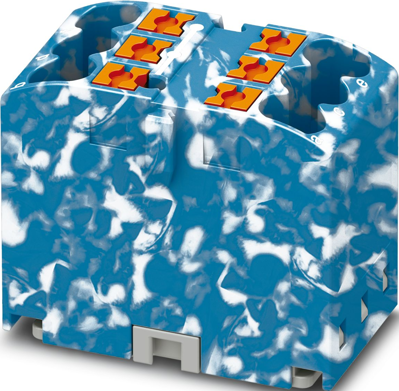

Distribution block, push-in connection, 0.14-4.0 mm², 24 A, 6 kV, multicoloured, 1091675
Unit Price (€ / pc.)
4.1055 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
4.11 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1055 €
10 pcs.
3.7961 €
50 pcs.
3.5343 €
100 pcs.
3.3082 €
*incl. VAT plus shipping costs
Subject to prior sale
Distribution block, 1091675, Phoenix Contact
Distribution block, Basic terminal block, nom. voltage: 450 V, nominal current: 24 A, number of connections: 6, connection method: Push-in connection, cross section: 0.14 mm² - 4 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: blue/white.
Features
- Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
- Clear wiring, thanks to eleven different color variants
- Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
- Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
- Space savings of up to 50 % on the DIN rail, thanks to transverse mounting
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 26 to 12 | |
| Length | 21.7 mm | |
| Rated current | 24 A | |
| Number of terminals | 6 | |
| Height | 28.6 mm | |
| Colour | multicoloured | |
| Rated surge voltage | 6 kV | |
| Width | 16 mm | |
| Degree of soiling | 3 | |
| Connection | push-in connection | |
| Version | distribution block | |
| Rated Voltage | 450 V | |
| Cable cross-section | 0.14-4.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
