1047454 | Phoenix Contact
Distribution block, push-in connection, 0.34-4.0 mm², 41 A, 6 kV, gray, 1047454
Unit Price (€ / pc.)
11.7215 € *
Available: 19 pcs.
Available in 5 Days: 1,246 pcs. - if ordered today
Total Price:
11.72 € *
Price list
Quantity
Price per unit*
1 pcs.
11.7215 €
10 pcs.
10.9361 €
50 pcs.
10.2340 €
100 pcs.
9.6271 €
*incl. VAT plus shipping costs
Subject to prior sale

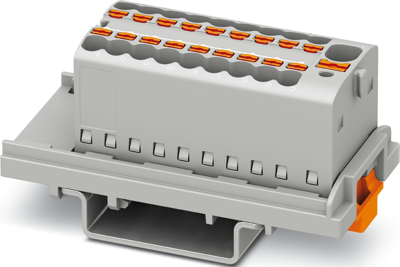

Distribution block, 1047454, Phoenix Contact
Distribution block, Block with vertical alignment and integrated supply, nom. voltage: 500 V, nominal current: 17.5 A, number of connections: 19, connection method: Push-in connection, Load contact, cross section: 0.14 mm² - 2.5 mm², Line contact, Rated cross section: 4 mm², cross section: 0.2 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: gray.
Features
- Convenient test options, thanks to test openings at every terminal point
- Space-saving potential distribution, thanks to compact micro potential distributors
- Flexible use, thanks to DIN rail and direct mounting
- Space-saving, thanks to the compact design
- Clear arrangement thanks to marking of all terminal points
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.34-4.0 mm² | |
| Rated current | 41 A | |
| Length | 28.4 mm | |
| AWG cross-section | AWG 24 to 10 | |
| Degree of soiling | 3 | |
| Rated surge voltage | 6 kV | |
| Rated Voltage | 500 V | |
| Colour | gray | |
| Connection | push-in connection | |
| Version | distribution block | |
| Height | 58.1 mm | |
| Width | 21.6 mm | |
| Number of terminals | 19 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
