1047418 | Phoenix Contact

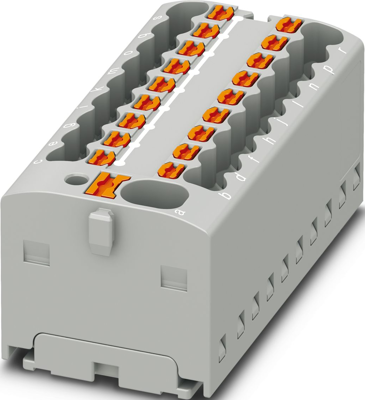

Distribution block, push-in connection, 0.34-4.0 mm², 41 A, 6 kV, gray, 1047418
Unit Price (€ / pc.)
10.3768 € *
Available in 10 days: 911 pcs. - if ordered today
Total Price:
10.38 € *
Price list
Quantity
Price per unit*
1 pcs.
10.3768 €
10 pcs.
9.6747 €
50 pcs.
9.0559 €
100 pcs.
8.5204 €
*incl. VAT plus shipping costs
Subject to prior sale
Distribution block, 1047418, Phoenix Contact
Distribution block, Basic terminal block with supply, nom. voltage: 450 V, nominal current: 17.5 A, number of connections: 19, Load contact, cross section: 0.14 mm² - 2.5 mm², Push-in connection, Line contact, Rated cross section: 4 mm², cross section: 0.2 mm² - 6 mm², mounting type: for snapping onto a DIN rail adapter, Direct mounting with flange, Free-hanging, color: gray.
Features
- Convenient test options, thanks to test openings at every terminal point
- Space-saving potential distribution, thanks to compact micro potential distributors
- Flexible use, thanks to DIN rail and direct mounting
- Space-saving, thanks to the compact design
- Clear arrangement thanks to marking of all terminal points
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 21.6 mm | |
| Version | distribution block | |
| Colour | gray | |
| Width | 43.9 mm | |
| Rated current | 41 A | |
| Degree of soiling | 3 | |
| Rated Voltage | 450 V | |
| AWG cross-section | AWG 24 to 10 | |
| Number of terminals | 19 | |
| Connection | push-in connection | |
| Rated surge voltage | 6 kV | |
| Cable cross-section | 0.34-4.0 mm² | |
| Length | 17.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
