1516797 | Phoenix Contact
PHOENIX CO 1516797
Unit Price (€ / pc.)
100.2575 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

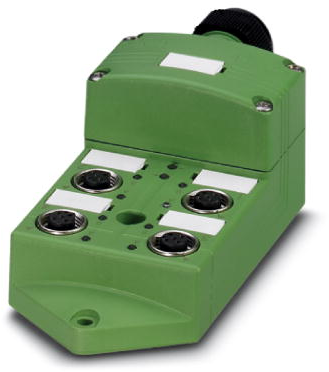

Sensor/actuator box, 1516797, Phoenix Contact
Sensor/actuator box, Application: standard, Connection method: M12-SPEEDCON-socket Metal, Number of slots: 4, Number of positions: 5, Coding: A-standard, Slot assignment: double, Status display: yes, PNP; Master cable connection: Pluggable screw connection 180°, Shielding: no
Features
- Safety in the field, thanks to molded housing and high degree of protection
- Convenient: increased machine availability thanks to quick and easy diagnostics
- Save space: distributor box with double occupancy for two sensors in one slot
- Save time, thanks to installation with SPEEDCON fast locking system
- Flexible: distributor box with connector hood for on-site assembly
Technical specifications
| Bus Input | M12 (5 pole, A coded, socket) | |
| Power Input | M12 | |
| Degree of protection (IP) | IP65/IP67/IP69K | |
| Signal type | PNP |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
