1681466 | Phoenix Contact
Plug, M23, 16 pole, crimp connection, ONECLICK quick locking system, straight, 1681466
Unit Price (€ / pc.)
19.1114 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
19.11 € *
Price list
Quantity
Price per unit*
1 pcs.
19.1114 €
10 pcs.
17.1955 €
25 pcs.
16.1245 €
50 pcs.
15.1725 €
*incl. VAT plus shipping costs
Subject to prior sale

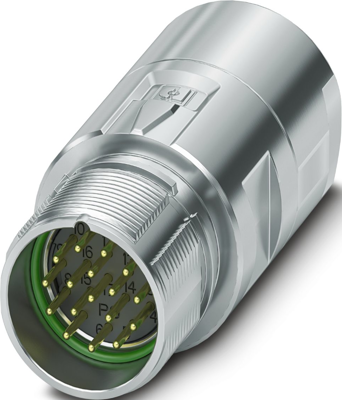

Coupler connector, 1681466, Phoenix Contact
M23, Coupler connector, series: M23 PRO, straight, shielded: yes, for standard and ONECLICK fast locking system, No. of position: 16, Direction of rotation: Standard, Contact connection type: Pin, Crimp connection, Cable diameter range: 3 mm - 15 mm, Coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).
Features
- Solutions with cross-manufacturer compatibility for standard and fast locking systems
- Modern, consistent design for highly convenient operation
- Safe use in the field, thanks to high degree of protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Type of locking | ONECLICK quick locking system | |
| Coding | N | |
| Pin number | 16 pole | |
| Thread size | M23 | |
| Degree of protection (IP) | IP66/IP68 | |
| Contact connection | crimp connection | |
| Product type | plug |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
