1629204 | Phoenix Contact
Jack, M23, 17 pole, crimp connection, screw locking, straight, 1629204
Unit Price (€ / pc.)
18.0047 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
18.00 € *
Price list
Quantity
Price per unit*
1 pcs.
18.0047 €
10 pcs.
16.7790 €
25 pcs.
15.7199 €
50 pcs.
14.7798 €
*incl. VAT plus shipping costs
Subject to prior sale

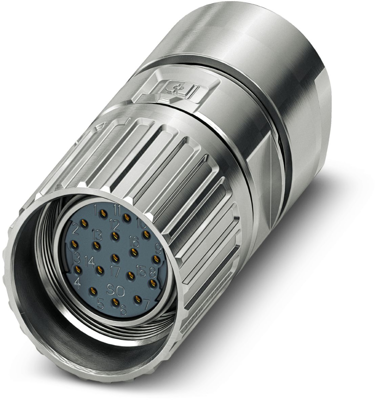

Cable connector, 1629204, Phoenix Contact
M23, Cable connector, Series: M23 PRO, straight, shielded: yes, Screw locking mechanism, number of positions: 17, Drehsinn: Standard, contact connection type: Socket, Crimp connection, cable diameter range: 3 mm - 15 mm, Kodierung: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).
Features
- Solutions with cross-manufacturer compatibility for standard and fast locking systems
- Reliable under the harshest conditions: cable connectors with vibration brake
- Modern, consistent design for highly convenient operation
- Easy, cost-effective cable assembly: uniform shielding of M17 to M40
Technical specifications
| Version | socket | |
| Contact connection | crimp connection | |
| Assembly | cable assembly | |
| Thread size | M23 | |
| Coding | N | |
| Pin number | 17 pole | |
| Degree of protection (IP) | IP66/IP68/IP69K | |
| Type of locking | screw locking | |
| Orientation | straight |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
