1506891 | Phoenix Contact

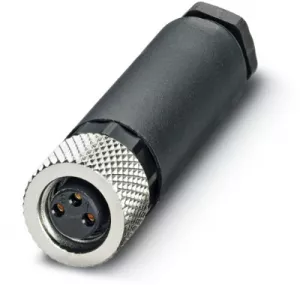

Socket, M8, 4 pole, screw connection, screw locking, straight, 1506891
Unit Price (€ / pc.)
28.2982 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
28.30 € *
Price list
Quantity
Price per unit*
1 pcs.
28.2982 €
10 pcs.
25.7397 €
25 pcs.
23.1693 €
50 pcs.
20.3966 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket, 1506891, Phoenix Contact
Connector, Universal, 4-position, Socket straight M8, Screw connection, knurl material: Nickel-plated brass, external cable diameter 3.5 mm - 5 mm.
Features
- Safe use in the field, thanks to high degree of protection
- A-coded
- Overvoltage category: III
- Pollution degree: 3
- Contact material: CuZn
- Degree of protection: IP67
Technical specifications
| Version | socket | |
| Additional parts | equipped | |
| Thread size | M8 | |
| Coding | A | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
