1501252 | Phoenix Contact

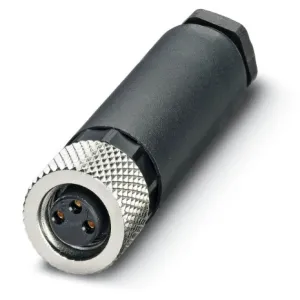

Plug, M8, 3 pole, screw connection, screw locking, straight, 1501252
Unit Price (€ / pc.)
20.1110 € *
Available: 9 pcs.
Available in 10 days: 1 pcs. - if ordered today
Total Price:
20.11 € *
Price list
Quantity
Price per unit*
1 pcs.
20.1110 €
10 pcs.
17.6953 €
50 pcs.
16.4934 €
150 pcs.
15.7675 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug, 1501252, Phoenix Contact
Connector, Universal, 3-position, plug straight M8, Screw connection, knurl material: Nickel-plated brass, external cable diameter 3.5 mm - 5 mm.
Features
- Safe use in the field, thanks to high degree of protection
- A-coded
- Overvoltage category: III
- Pollution degree: 3
- Contact material: CuZn
- Degree of protection: IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | A | |
| Product type | plug | |
| Contact connection | screw connection | |
| Degree of protection (IP) | IP67 | |
| Orientation | straight | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Pin number | 3 pole | |
| Type of locking | screw locking | |
| Thread size | M8 | |
| Assembly | cable assembly |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
