1441943 | Phoenix Contact
Plug, M12, 12 pole, solder connection, screw locking, straight, 1441943
Unit Price (€ / pc.)
20.6822 € *
Available in 5 Days: 256 pcs. - if ordered today

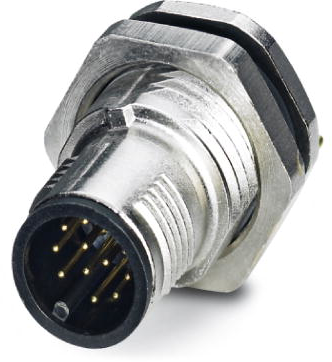

Sensor-actuator connector, 1441943, Phoenix Contact
Sensor/actuator flush-type plug, 12-pole with shield contact, M12 SPEEDCON, rear/screw mounting with M16 thread, with straight solder connection.
Features
- Easy PCB assembly
- Fast locking system
- A-coded
- Overvoltage category: I
- Degree of protection: IP67
- Pollution degree: 3
Applications
- For transmission of signals
- For data transimission
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | rear/screw mounting | |
| Coding | A | |
| Thread size | M12 | |
| Orientation | straight | |
| Degree of protection (IP) | IP65/IP67 | |
| Product type | plug | |
| Pin number | 12 pole | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
