1424140 | Phoenix Contact
Panel plug, M12, 4 pole, strand connection, straight, 1424140
Unit Price (€ / pc.)
20.1110 € *
Available in 5 Days: 447 pcs. - if ordered today
Total Price:
20.11 € *
Price list
Quantity
Price per unit*
1 pcs.
20.1110 €
5 pcs.
19.1352 €
10 pcs.
18.2308 €
15 pcs.
17.1717 €
*incl. VAT plus shipping costs
Subject to prior sale

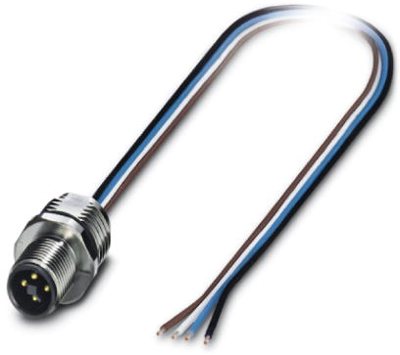

Power connector, 1424140, Phoenix Contact
Flush-type connector, Power, 4-position, Plug, M12, Front mounting, M16 x 1.5, Individual wires, cable length: 0.5 m, 1.31 mm², UL/cUL stranded hook-up wire.
Features
- Pre-assembled with litz wires for immediate use
- Sealed on the litz wire side for optimum leak-tightness
- T-coded
- Pollution degree: 3
- Overvoltage category: III
- Degree of protection: IP67
Applications
- For transmitting high power
- For high transmission safety
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | cable 0.5 m | |
| contact surface | gold-plated | |
| Pin number | 4 pole | |
| Contact connection | strand connection | |
| Orientation | straight | |
| Degree of protection (IP) | IP65/IP67 | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Coding | T | |
| Product type | panel plug | |
| Assembly | front mounting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
