1340692 | Phoenix Contact

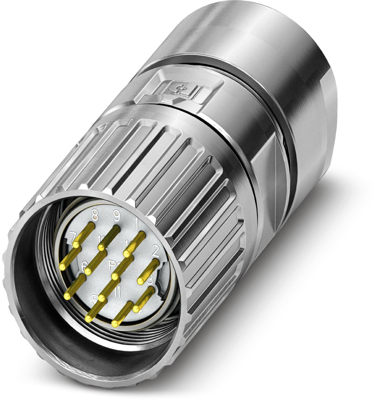

Plug, M23, 12 pole, solder connection, screw locking, straight, 1340692
Unit Price (€ / pc.)
20.7417 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
20.74 € *
Price list
Quantity
Price per unit*
1 pcs.
20.7417 €
10 pcs.
19.4446 €
25 pcs.
18.3022 €
50 pcs.
17.2907 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable connector, 1340692, Phoenix Contact
M23, Cable connector, Series: M23 PRO, straight, shielded: yes, Screw locking mechanism, number of positions: 12, Drehsinn: Standard, contact connection type: Stift, Lötanschluss, cable diameter range: 6 mm - 10 mm, Kodierung: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).
Features
- Solutions with cross-manufacturer compatibility for standard and fast locking systems
- Modern, consistent design for highly convenient operation
- All housing can be fitted with pin or socket contacts
- Safe use in the field, thanks to high degree of protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| Assembly | cable assembly | |
| Coding | N | |
| Thread size | M23 | |
| Orientation | straight | |
| Degree of protection (IP) | IP66/IP68/IP69K | |
| Product type | plug | |
| Pin number | 12 pole | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
