1340658 | Phoenix Contact

Plug, M23, 6 pole, solder connection, screw locking, straight, 1340658

Order No.: 64P6193
EAN: 4063151647278
MPN:
1340658
Series: M23 PRO

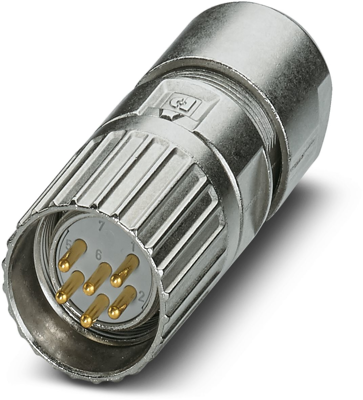

1340658 Phoenix Contact Sensor-Actuator Connectors Image 1
1340658 Phoenix Contact Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
21.0987 € *
Available in 10 days: 1 pcs. - if ordered today
Total Price:
21.10 € *
Price list
Quantity
Price per unit*
1 pcs.
21.0987 €
10 pcs.
19.7897 €
25 pcs.
18.6235 €
50 pcs.
17.5882 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable connector, 1340658, Phoenix Contact

M23, Cable connector, Series: M23 PRO, straight, shielded: yes, Screw locking mechanism, number of positions: 6, Drehsinn: Standard, contact connection type: Stift, Lötanschluss, cable diameter range: 6 mm - 10 mm, Kodierung: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • Solutions with cross-manufacturer compatibility for standard and fast locking systems
  • Modern, consistent design for highly convenient operation
  • All housing can be fitted with pin or socket contacts
  • Safe use in the field, thanks to high degree of protection
Technical specifications
Filter Property Value
Pin number 6 pole
Contact connection solder connection
Assembly cable assembly
Product type plug
Coding N
Orientation straight
Degree of protection (IP) IP66/IP68/IP69K
Thread size M23
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
