1245215 | Phoenix Contact

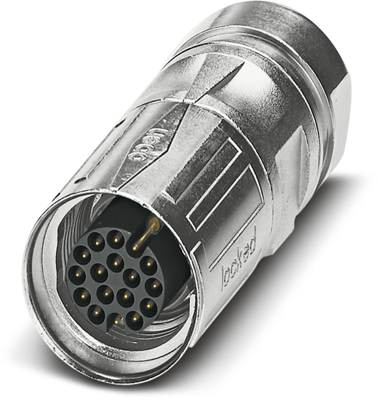

Plug, M17, 17 pole, crimp connection, SPEEDCON locking, straight, 1245215

Order No.: 64P5488
EAN: 4063151409753
MPN:
1245215
Series: ST
1245215 Phoenix Contact Sensor-Actuator Connectors Image 1
1245215 Phoenix Contact Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
22.3720 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
22.37 € *
Price list
Quantity
Price per unit*
1 pcs.
22.3720 €
10 pcs.
20.9797 €
25 pcs.
19.7421 €
50 pcs.
18.6473 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable connector, 1245215, Phoenix Contact

Cable connector, straight, SPEEDCON, M17, number of positions: 17, contact connection type: Stift, shielded: yes, degree of protection: IP67, cable diameter range: 10 mm - 12,5 mm, number of positions: 17, connection method: Crimp connection, Series: ST, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • Consistent EMC protection for reliable connection solutions in the industrial environment
  • Crimping connection: vibration- and temperature-resistant assembly
  • Flexible use: reliably connect various cable diameters
  • Molded designs with preassembled cables on one or both sides
Technical specifications
Pin number 17 pole
Type of locking SPEEDCON locking
Contact connection crimp connection
Product type plug
Coding N
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size M17
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
