1242778 | Phoenix Contact

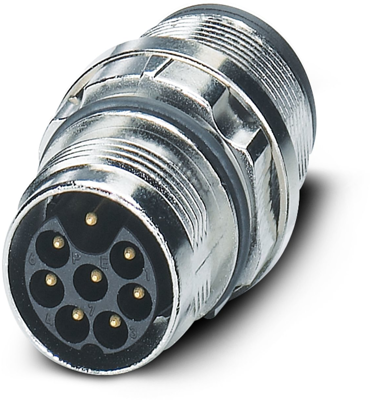

Panel plug, M17, 7 pole, crimp connection, standard/SPEEDCON locking system, straight, 1242778
Unit Price (€ / pc.)
14.2324 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
14.23 € *
Price list
Quantity
Price per unit*
1 pcs.
14.2324 €
10 pcs.
13.2685 €
50 pcs.
12.4236 €
100 pcs.
11.6858 €
*incl. VAT plus shipping costs
Subject to prior sale
Device connector front mounting, 1242778, Phoenix Contact
Device connector front mounting, straight, for standard and SPEEDCON interlock, M17, number of positions: 6+PE, contact connection type: Pin, Axial O-ring, Central fixing, shielded: yes, number of positions: 7, connection method: Crimp connection, series: ST, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).
Features
- Application-specific panel mounting optionally with thread or anti-rotation protection and lock nut
- Consistent EMC protection for reliable connection solutions in the industrial environment
- Crimping connection: vibration- and temperature-resistant assembly
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Thread size | M17 | |
| Pin number | 7 pole | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Type of locking | standard/SPEEDCON locking system | |
| Assembly | front mounting | |
| Contact connection | crimp connection | |
| Product type | panel plug | |
| Coding | N |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
