1240050 | Phoenix Contact

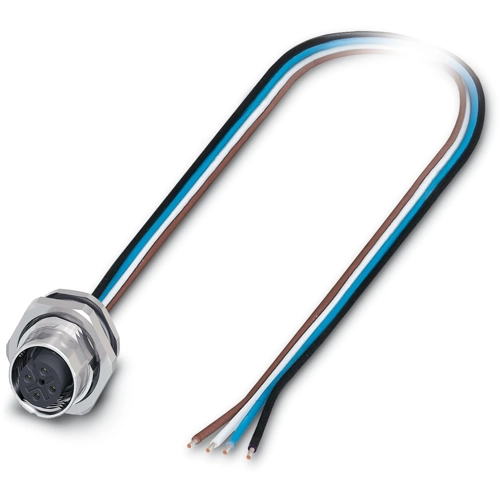

Panel socket, M12, 4 pole, straight, 1240050

Order No.: 64P6533
EAN: 4063151394653
MPN:
1240050
Series: SACC
1240050 Phoenix Contact Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
17.0927 € *
Available in 10 days: 1 pcs. - if ordered today
Total Price:
17.09 € *
Price list
Quantity
Price per unit*
1 pcs.
17.0927 €
10 pcs.
15.9339 €
50 pcs.
14.9222 €
100 pcs.
14.0313 €
*incl. VAT plus shipping costs
Subject to prior sale

Device connector rear mounting, 1240050, Phoenix Contact

Device connector rear mounting, Universal, 4-position, Socket, straight, M12-SPEEDCON, coding: A, on free cable end, Rear mounting, Pg9, Individual wires, cable length: 0.5 m, 0.34 mm², TPE litz wire, potted, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb < 0.1 %).

Features

  • Preassembled with litz wires for immediate use
  • Sealed on the litz wire side for optimum leak-tightness
  • All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design
  • For high transmission safety: shield connection to the housing with optional EMC nut
  • SPEEDCON fast locking system reduces cabling times
Technical specifications
Version cable 0.5 m
Pin number 4 pole
Additional parts equipped
Thread size M12
Orientation straight
Product type panel socket
Logistics
Customs tariff number 85444290
Country of origin DE
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
