1105892 | Phoenix Contact
Surface-mounting plug, M23, 6 pole, crimp connection, standard/SPEEDCON locking system, straight, 1105892
Unit Price (€ / pc.)
17.4216 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
17.42 € *
Price list
Quantity
Price per unit*
1 pcs.
17.4216 €
10 pcs.
16.2316 €
50 pcs.
15.2082 €
100 pcs.
14.2919 €
*incl. VAT plus shipping costs
Subject to prior sale
Device connector front mounting, 1105892, Phoenix Contact

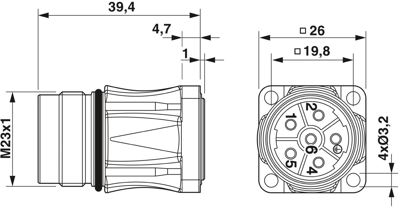

Device connector front mounting, straight, for standard and SPEEDCON interlock, M23, number of positions: 5+PE, contact connection type: Pin, Axial O-ring, shielded: yes, flange dimensions: 26 mm x 26 mm, Compatible with mating connectors with SPEEDCON or M23 standard knurled nuts, number of positions: 6, connection method: Crimp connection, series: SF.
Features
- Consistent EMC protection for reliable connection solutions in the industrial environment
- Crimping connection: vibration- and temperature-resistant assembly
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 6 pole | |
| Type of locking | standard/SPEEDCON locking system | |
| Contact connection | crimp connection | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Thread size | M23 | |
| Coding | N | |
| Product type | surface-mounting plug | |
| Assembly | panel mounting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
