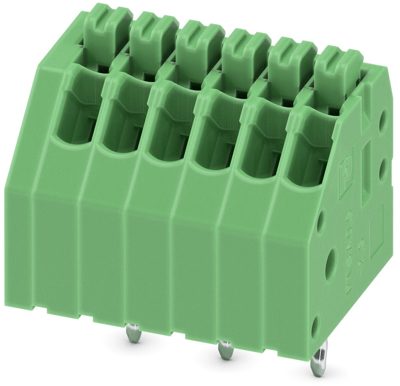

Name: PCB terminal, 6 pole, pitch 2.5 mm, AWG 24-20, 2 A, spring-clamp connection, green, 1990041
Brand: Phoenix Contact
SKU: 09H2204
Price: 1.74 EUR
Availability: InStock

PCB terminal, 1990041, Phoenix Contact

PCB terminal block, nominal current: 2 A, rated voltage (III/2): 250 V, nominal cross section: 0.5 mm², number of potentials: 6, number of rows: 1, number of positions per row: 6, pitch: 2.5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 45 °, color: green, pin layout: Zigzag pinning W, solder pin: 3.6 mm, number of solder pins per potential: 1.

Features

Time saving push-in connection, tools not required

Defined contact force ensures that contact remains stable over the long term

Angled connection enables multi-row arrangement on the PCB

PCB terminal, 6 pole, pitch 2.5 mm, AWG 24-20, 2 A, spring-clamp connection, green, 1990041

Order No.:

09H2204

Manufacturer:

Phoenix Contact

Manufacturer SKU:

1990041

Available: 198 pcs. Leadtime: 2 Weeks **

Total Price: 1.74 € *

1 pcs.

1.7374 €

10 pcs.

1.5708 €

100 pcs.

1.3328 €

0.14-0.5 mm²

16.5 mm

2.5 mm

6 pole

250 V

AWG 24-20

2 A

12 mm

16.7 mm

spring-clamp connection

green

PCB terminal, 3 pole, pitch 2.5 mm, AWG 24-20, 2 A, spring-clamp connection, green, 1990012

Order No.:

09H2201

Manufacturer:

Phoenix Contact

Manufacturer SKU:

1990012

Available: 250 pcs. Leadtime: 2 Weeks **

Total Price: 0.88 € *

1 pcs.

0.8806 €

10 pcs.

0.7973 €

100 pcs.

0.6783 €

0.14-0.5 mm²

9 mm

2.5 mm

3 pole

250 V

AWG 24-20

2 A

12 mm

16.7 mm

spring-clamp connection

green

PCB terminal, 4 pole, pitch 2.5 mm, AWG 24-10, 2 A, spring-clamp connection, green, 1989764

Order No.:

09H2222

Manufacturer:

Phoenix Contact

Manufacturer SKU:

1989764

Available: 161 pcs. Leadtime: 2 Weeks **

Total Price: 0.95 € *

1 pcs.

0.9520 €

0.14-0.5 mm²

11.5 mm

2.5 mm

4 pole

250 V

AWG 24-10

2 A

12 mm

16.7 mm

spring-clamp connection

green

PCB terminal, 14 pole, pitch 2.5 mm, AWG 24-20, 2 A, spring-clamp connection, green, 1990122

Order No.:

09H2212

Manufacturer:

Phoenix Contact

Manufacturer SKU:

1990122

Available: 30 pcs. Leadtime: 9 Weeks **

Total Price: 3.82 € *

1 pcs.

3.8199 €

10 pcs.

3.4391 €

100 pcs.

2.9155 €

0.14-0.5 mm²

36.5 mm

2.5 mm

14 pole

250 V

AWG 24-20

2 A

12 mm

16.7 mm

spring-clamp connection

green

PCB terminal, 2 pole, pitch 3.5 mm, AWG 24-16, 8 A, spring-clamp connection, green, 1985195

Order No.:

09H2250

Manufacturer:

Phoenix Contact

Manufacturer SKU:

1985195

Available: 206 pcs. Leadtime: 21 Weeks **

Total Price: 0.54 € *

1 pcs.

0.5355 €

0.2-1.5 mm²

8.5 mm

3.5 mm

2 pole

400 V

AWG 24-16

8 A

12 mm

16.7 mm

spring-clamp connection

green

PCB terminal, 15 pole, pitch 2.5 mm, AWG 24-20, 2 A, spring-clamp connection, green, 1990135

Order No.:

09H2213

Manufacturer:

Phoenix Contact

Manufacturer SKU:

1990135

Available: 50 pcs. Leadtime: 9 Weeks **

Total Price: 3.94 € *

1 pcs.

3.9389 €

10 pcs.

3.5462 €

100 pcs.

2.9988 €

0.14-0.5 mm²

39 mm

2.5 mm

15 pole

250 V

AWG 24-20

2 A

12 mm

16.7 mm

spring-clamp connection

green

PCB terminal, 5 pole, pitch 2.5 mm, AWG 24-20, 2 A, spring-clamp connection, green, 1990038

Order No.:

09H2203

Manufacturer:

Phoenix Contact

Manufacturer SKU:

1990038

Available: 100 pcs. Leadtime: 2 Weeks **

Total Price: 1.46 € *

1 pcs.

1.4637 €

10 pcs.

1.3090 €

100 pcs.

1.1186 €

0.14-0.5 mm²

14 mm

2.5 mm

5 pole

250 V

AWG 24-20

2 A

12 mm

16.7 mm

spring-clamp connection

green

PCB terminal, 13 pole, pitch 2.5 mm, AWG 24-20, 2 A, spring-clamp connection, green, 1990119

Order No.:

09H2211

Manufacturer:

Phoenix Contact

Manufacturer SKU:

1990119

Available: 50 pcs. Leadtime: 9 Weeks **

Total Price: 3.56 € *

1 pcs.

3.5581 €

10 pcs.

3.2011 €

100 pcs.

2.7132 €

0.14-0.5 mm²

34 mm

2.5 mm

13 pole

250 V

AWG 24-20

2 A

12 mm

16.7 mm

spring-clamp connection

green

PCB terminal, 8 pole, pitch 2.5 mm, AWG 24-20, 2 A, spring-clamp connection, green, 1990067

Order No.:

09H2206

Manufacturer:

Phoenix Contact

Manufacturer SKU:

1990067

Available: 11 pcs. Leadtime: 2 Weeks **

Total Price: 2.33 € *

1 pcs.

2.3324 €

10 pcs.

2.1063 €

100 pcs.

1.7731 €

0.14-0.5 mm²

21.5 mm

2.5 mm

8 pole

250 V

AWG 24-20

2 A

12 mm

16.7 mm

spring-clamp connection

green

PCB terminal, 12 pole, pitch 2.5 mm, AWG 24-20, 2 A, spring-clamp connection, green, 1990106

Order No.:

09H2210

Manufacturer:

Phoenix Contact

Manufacturer SKU:

1990106

Available: 50 pcs. Leadtime: 2 Weeks **

Total Price: 3.50 € *

1 pcs.

3.4986 €

10 pcs.

3.1535 €

100 pcs.

2.6775 €

0.14-0.5 mm²

31.5 mm

2.5 mm

12 pole

250 V

AWG 24-20

2 A

12 mm

16.7 mm

spring-clamp connection

green

PCB terminal, 2 pole, pitch 3.5 mm, AWG 24-16, 8 A, spring-clamp connection, green, 1984963

Order No.:

09H2270

Manufacturer:

Phoenix Contact

Manufacturer SKU:

1984963

Available: 401 pcs. Leadtime: 2 Weeks **

Total Price: 0.57 € *

1 pcs.

0.5712 €

10 pcs.

0.5117 €

100 pcs.

0.4403 €

0.2-1.5 mm²

8.5 mm

3.5 mm

2 pole

250 V

AWG 24-16

8 A

12 mm

16.7 mm

spring-clamp connection

green

PCB terminal, 3 pole, pitch 2.5 mm, AWG 24-10, 2 A, spring-clamp connection, green, 1989751

Order No.:

09H2221

Manufacturer:

Phoenix Contact

Manufacturer SKU:

1989751

Available: 63 pcs. Leadtime: 2 Weeks **

Total Price: 0.71 € *

1 pcs.

0.714 €

0.14-0.5 mm²

9 mm

2.5 mm

3 pole

250 V

AWG 24-10

2 A

12 mm

16.7 mm

spring-clamp connection

green

PCB terminal, 6 pole, pitch 3.5 mm, AWG 24-16, 8 A, spring-clamp connection, green, 1985234

Order No.:

09H2254

Manufacturer:

Phoenix Contact

Manufacturer SKU:

1985234

Available: 0 pcs. Leadtime: 2 Weeks **

Total Price: 1.21 € *

1 pcs.

1.2138 €

0.2-1.5 mm²

22.5 mm

3.5 mm

6 pole

400 V

AWG 24-16

8 A

12 mm

16.7 mm

spring-clamp connection

green

PCB terminal, 2 pole, pitch 2.5 mm, AWG 24-20, 2 A, spring-clamp connection, green, 1990009

Order No.:

09H2200

Manufacturer:

Phoenix Contact

Manufacturer SKU:

1990009

Available: 0 pcs. Leadtime: 2 Weeks **

Total Price: 0.57 € *

1 pcs.

0.5712 €

10 pcs.

0.5117 €

100 pcs.

0.4403 €

0.14-0.5 mm²

6.5 mm

2.5 mm

2 pole

250 V

AWG 24-20

2 A

12 mm

16.7 mm

spring-clamp connection

green

PCB terminal, 8 pole, pitch 2.5 mm, AWG 24-10, 2 A, spring-clamp connection, green, 1989803

Order No.:

09H2226

Manufacturer:

Phoenix Contact

Manufacturer SKU:

1989803

Available: 0 pcs. Leadtime: 2 Weeks **

Total Price: 2.33 € *

1 pcs.

2.3324 €

10 pcs.

2.1063 €

100 pcs.

1.7731 €

0.14-0.5 mm²

21.5 mm

2.5 mm

8 pole

250 V

AWG 24-10

2 A

12 mm

16.7 mm

spring-clamp connection

green

PCB terminal, 4 pole, pitch 3.5 mm, AWG 24-16, 8 A, spring-clamp connection, green, 1984989

Order No.:

09H2272

Manufacturer:

Phoenix Contact

Manufacturer SKU:

1984989

Available: 0 pcs. Leadtime: 2 Weeks **

Total Price: 1.17 € *

1 pcs.

1.1662 €

10 pcs.

1.0591 €

100 pcs.

0.8925 €

0.2-1.5 mm²

15.5 mm

3.5 mm

4 pole

250 V

AWG 24-16

8 A

12 mm

16.7 mm

spring-clamp connection

green

PCB terminal, 2 pole, pitch 2.5 mm, AWG 24-10, 2 A, spring-clamp connection, green, 1989748

Order No.:

09H2220

Manufacturer:

Phoenix Contact

Manufacturer SKU:

1989748

Available: 0 pcs. Leadtime: 2 Weeks **

Total Price: 0.57 € *

1 pcs.

0.5712 €

10 pcs.

0.5117 €

100 pcs.

0.4403 €

0.14-0.5 mm²

6.5 mm

2.5 mm

2 pole

250 V

AWG 24-10

2 A

12 mm

16.7 mm

spring-clamp connection

green

Country of origin	PL
Customs tariff number	85369010

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

Country	Runtime days	Freight excl. VAT	Freight incl. VAT
Germany	1	6,90 €	8,21 €
Austria	1-2	8,30 €	9,96 €
Switzerland	1-2	16,40 €	19,52 €

	Connection	spring-clamp connection
	AWG cross-section	AWG 24-20
	Width	16.5 mm
	Colour	green
	Height	16.7 mm
	Cable cross-section	0.14-0.5 mm²
	Rated voltage	250 V
	Rated current	2 A
	Pin number	6 pole
	Grid	2.5 mm
	Depth	12 mm

1990041 | Phoenix Contact

PCB terminal, 6 pole, pitch 2.5 mm, AWG 24-20, 2 A, spring-clamp connection, green, 1990041

PCB terminal, 1990041, Phoenix Contact
