1984808 | Phoenix Contact

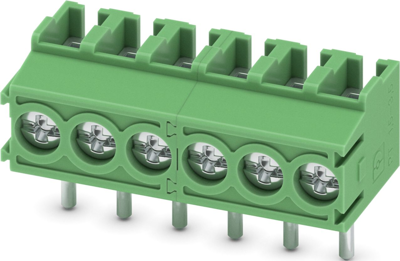

Name: PCB terminal, 6 pole, pitch 3.5 mm, AWG 26-16, 17.5 A, screw connection, green, 1984808
Brand: Phoenix Contact
SKU: 63P4988
Availability: InStock

PCB terminal, 6 pole, pitch 3.5 mm, AWG 26-16, 17.5 A, screw connection, green, 1984808

Order No.: 63P4988

EAN: 4017918946357

MPN:

1984808

PT 1,5/ 6-3,5-V

Series: PT

Unit Price (€ / pc.)

2.0468 € *

Available in 10 days: 433 pcs. - if ordered today

Total Price:

2.05 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

PCB terminal blocks, 1984808, Phoenix Contact

Printed circuit board terminal, nominal current: 17.5 A, rated voltage (III/2): 200 V, nominal cross section: 1.5 mm², number of potentials: 6, number of rows: 1, number of positions per row: 6, product range: PT 1,5/..-V, pitch: 3.5 mm, connection method: Screw connection with wire protector, mounting: Wave soldering, conductor/PCB connection direction: 90 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 4.5 mm, number of solder pins per potential: 1.

Features

Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
High terminal block capacity thanks to rectangular terminal block space
Allows connection of two conductors
The latching on the side enables various numbers of positions to be combined

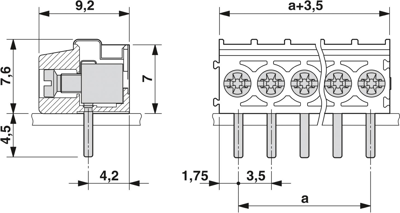

Technical specifications

Filter	Property	Value
	Pin number	6 pole
	Grid	3.5 mm
	Cable cross-section	0.2-1.5 mm²
	AWG cross-section	AWG 26-16
	Contact distance	RM 3.5
	Rated current	17.5 A
	Rated voltage	200 V
	Width	21 mm
	Height	12.05 mm
	Depth	9.15 mm
	Connection	screw connection
	Assembly	THT
	Colour	green
