1984675 | Phoenix Contact

PCB terminal, 8 pole, pitch 3.5 mm, AWG 26-16, 17.5 A, screw connection, green, 1984675

Order No.: 09H2306
EAN: 4017918946227
MPN:
1984675
PT 1,5/ 8-3,5-H
Series: PT 1,5/..-H
Phoenix Contact
default L

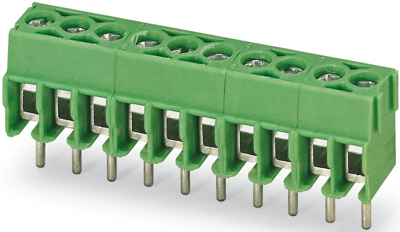

Image may differ
Unit Price (€ / pc.)
2.7846 € *
Available: 56 pcs.
Leadtime: On Request **
Total Price:
2.78 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7846 €
10 pcs.
2.4990 €
100 pcs.
2.1301 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, 1984675, Phoenix Contact

PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 200 V, nominal cross section: 1.5 mm², number of potentials: 8, number of rows: 1, number of positions per row: 8, pitch: 3.5 mm, connection method: screw connection with wire protector, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 4.5 mm, number of solder pins per potential: 1.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • High terminal block capacity thanks to rectangular terminal block space
  • The latching on the side enables various numbers of positions to be combined
Technical specifications
Connection screw connection
AWG cross-section AWG 26-16
Width 28 mm
Colour green
Height 13.65 mm
Cable cross-section 0.2-1.5 mm²
Rated voltage 200 V
Rated current 17.5 A
Pin number 8 pole
Grid 3.5 mm
Depth 7.55 mm
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
