1935857 | Phoenix Contact

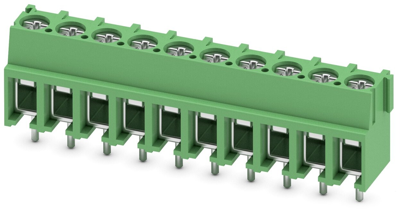

PCB terminal, 10 pole, pitch 5 mm, AWG 20-10, 32 A, screw connection, green, 1935857

Phoenix Contact
default L
default S
Images may differ
Order No.:  09H2408
Manufacturer:  Phoenix Contact
Manufacturer SKU:
1935857
PT 2,5/10-5,0-H
Manufacturer series:  PT 2,5/..-H
EAN: 4017918948474
about the green icons
Total price
( 3.3320 € * / pcs.)
3.33 €
Available: 100 pcs.
Leadtime
Quantity
Price per unit*
1 pcs.
3.3320 €
10 pcs.
2.9274 €
100 pcs.
2.5704 €
250 pcs.
2.4752 €
*incl. VAT plus shipping costs
Show 7 variants
Description
Technical specifications
Logistics
Compliance
Download
Variations
Description

PCB terminal, 1935857, Phoenix Contact

PCB terminal block, nominal current: 32 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 10, number of rows: 1, number of positions per row: 10, pitch: 5 mm, connection method: screw connection with wire protector, screw head form: H1L Philipps recess with slotted Torx, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 4.1 mm, number of solder pins per potential: 1.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • High terminal block capacity thanks to rectangular terminal block space
  • The latching on the side enables various numbers of positions to be combined

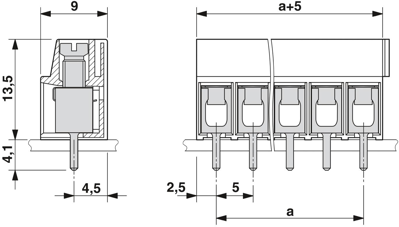

Technical specifications
Connection screw connection
AWG cross-section AWG 20-10
Width 50 mm
Colour green
Height 17.6 mm
Cable cross-section 0.5-4.0 mm²
Rated voltage 400 V
Rated current 32 A
Pin number 10 pole
Grid 5 mm
Depth 9 mm
Show similar products (0)
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
Variations
Width
Unit
Pin number
Cable cross-section
Depth
Unit
Grid
Unit
Height
Unit
Connection
Colour
Rated voltage
Unit
AWG cross-section
Rated current
Unit
Search results: 1 item in 7 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Availability
Width
Pin number
Cable cross-section
Depth
Grid
Height
Connection
Colour
Rated voltage
AWG cross-section
Rated current
PCB terminal, 10 pole, pitch 5 mm, AWG 20-10, 32 A, screw connection, green, 1935857
PCB terminal, 10 pole, pitch 5 mm, AWG 20-10, 32 A, screw connection, green, 1935857
Order No.:
 09H2408
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 1935857
3.33 € *
1 pcs.
3.3320 €
10 pcs.
2.9274 €
100 pcs.
2.5704 €
250 pcs.
2.4752 €
Available: 100 pcs.
Leadtime
50 mm
10 pole
0.5-4.0 mm²
9 mm
5 mm
17.6 mm
screw connection
green
400 V
AWG 20-10
32 A

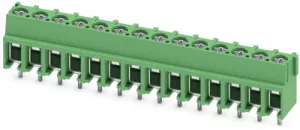

PCB terminal, 14 pole, pitch 5 mm, AWG 20-10, 32 A, screw connection, green, 1935899
PCB terminal, 14 pole, pitch 5 mm, AWG 20-10, 32 A, screw connection, green, 1935899
Order No.:
 09H2412
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 1935899
4.65 € *
1 pcs.
4.6529 €
10 pcs.
4.0936 €
100 pcs.
3.5938 €
250 pcs.
3.4629 €
Available: 50 pcs.
Leadtime
70 mm
14 pole
0.5-4.0 mm²
9 mm
5 mm
17.6 mm
screw connection
green
400 V
AWG 20-10
32 A
PCB terminal, 3 pole, pitch 5 mm, AWG 20-10, 32 A, screw connection, green, 1935789
PCB terminal, 3 pole, pitch 5 mm, AWG 20-10, 32 A, screw connection, green, 1935789
Order No.:
 09H2401
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 1935789
13.09 € *
10 pcs.
1.3090 €
50 pcs.
1.1662 €
250 pcs.
0.9996 €
1000 pcs.
0.8687 €
2500 pcs.
0.7973 €
Available: 135 pcs.
Leadtime
15 mm
3 pole
0.5-4.0 mm²
9 mm
5 mm
17.6 mm
screw connection
green
400 V
AWG 20-10
32 A
PCB terminal, 4 pole, pitch 5 mm, AWG 20-10, 32 A, screw connection, green, 1935792
PCB terminal, 4 pole, pitch 5 mm, AWG 20-10, 32 A, screw connection, green, 1935792
Order No.:
 09H2402
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 1935792
1.51 € *
1 pcs.
1.5113 €
25 pcs.
1.2852 €
100 pcs.
1.1900 €
250 pcs.
1.1424 €
1000 pcs.
1.0353 €
Available: 250 pcs.
Leadtime
20 mm
4 pole
0.5-4.0 mm²
9 mm
5 mm
17.6 mm
screw connection
green
400 V
AWG 20-10
32 A
PCB terminal, 15 pole, pitch 5 mm, AWG 20-10, 32 A, screw connection, green, 1935909
PCB terminal, 15 pole, pitch 5 mm, AWG 20-10, 32 A, screw connection, green, 1935909
Order No.:
 09H2413
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 1935909
5.00 € *
1 pcs.
4.9980 €
10 pcs.
4.3911 €
100 pcs.
3.8556 €
250 pcs.
3.7128 €
Available: 50 pcs.
Leadtime
75 mm
15 pole
0.5-4.0 mm²
9 mm
5 mm
17.6 mm
screw connection
green
400 V
AWG 20-10
32 A
PCB terminal, 2 pole, pitch 5 mm, AWG 20-10, 32 A, screw connection, green, 1935776
PCB terminal, 2 pole, pitch 5 mm, AWG 20-10, 32 A, screw connection, green, 1935776
Order No.:
 09H2400
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 1935776
8.69 € *
10 pcs.
0.8687 €
50 pcs.
0.7735 €
250 pcs.
0.6664 €
Available: 133 pcs.
Leadtime
10 mm
2 pole
0.5-4.0 mm²
9 mm
5 mm
17.6 mm
screw connection
green
400 V
AWG 20-10
32 A
PCB terminal, 11 pole, pitch 5 mm, AWG 20-10, 32 A, screw connection, green, 1935860
PCB terminal, 11 pole, pitch 5 mm, AWG 20-10, 32 A, screw connection, green, 1935860
Order No.:
 09H2409
Manufacturer:
 Phoenix Contact
Manufacturer SKU:
 1935860
3.67 € *
1 pcs.
3.6652 €
10 pcs.
3.2249 €
100 pcs.
2.8203 €
250 pcs.
2.7132 €
Available: 50 pcs.
Leadtime
55 mm
11 pole
0.5-4.0 mm²
9 mm
5 mm
17.6 mm
screw connection
green
400 V
AWG 20-10
32 A
