1935792 | Phoenix Contact
PCB terminal, 4 pole, pitch 5 mm, AWG 20-10, 32 A, screw connection, green, 1935792
Unit Price (€ / pc.)
1.2376 € *
Available: 245 pcs.
Available in 5 Days: 21,750 pcs. - if ordered today

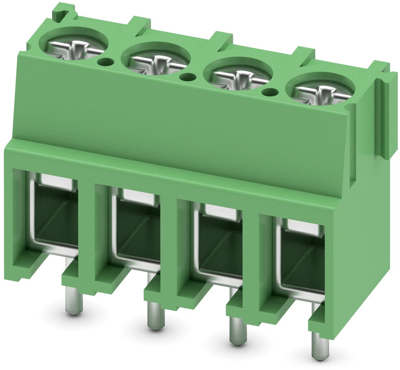

PCB terminal, 1935792, Phoenix Contact
PCB terminal block, nominal current: 32 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, pitch: 5 mm, connection method: screw connection with wire protector, screw head form: H1L Philipps recess with slotted Torx, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 4.1 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- High terminal block capacity thanks to rectangular terminal block space
- The latching on the side enables various numbers of positions to be combined

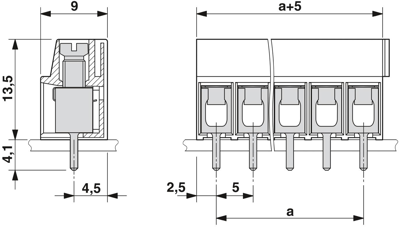

Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20-10 | |
| Depth | 9 mm | |
| Pin number | 4 pole | |
| Colour | green | |
| Cable cross-section | 0.5-4.0 mm² | |
| Connection | screw connection | |
| Grid | 5 mm | |
| Rated voltage | 400 V | |
| Rated current | 32 A | |
| Width | 20 mm | |
| Assembly | THT | |
| Height | 17.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
