1836121 | Phoenix Contact

Socket header, 7 pole, pitch 5.08 mm, straight, green, 1836121

Order No.: 63P2272
EAN: 4017918110994
MPN:
1836121
MC 1,5/ 7-ST-5,08
Series: COMBICON MC 1,5

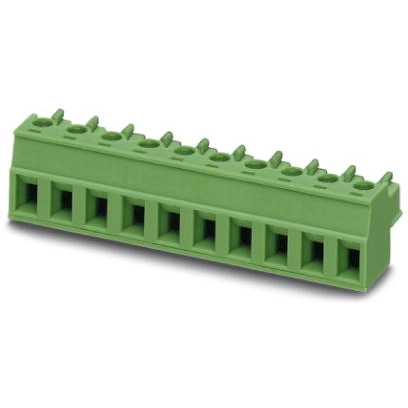

1836121 Phoenix Contact PCB Connection Systems Image 1
1836121 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
4.7124 € *
Available in 10 days: 13 pcs. - if ordered today
Total Price:
4.71 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.7124 €

PCB Connector, 1836121, PHOENIX

PCB plug, rated current: 8 A, rated voltage (III/2): 320 V, number of poles: 7, grid spacing: 5.08 mm, connection type: screw connection with tension sleeve, color: green, contact surface: tin.

Technical specifications
Number of rows 1
Rated voltage 320 V
Contact type socket
Type of locking No
Connection screw connection
contact surface tin-plated
Pin number 7 pole
Grid 5.08 mm
Connection plating tin-plated
Orientation straight
Additional parts equipped
Colour green
Version socket header
Rated current 8 A
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
