1836095 | Phoenix Contact

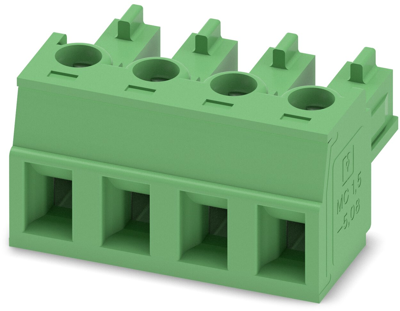

Socket header, 4 pole, pitch 5.08 mm, straight, green, 1836095
Order No.: 63P2104
EAN: 4017918105587
MPN:
1836095
MC 1,5/ 4-ST-5,08
Unit Price (€ / pc.)
3.7604 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
3.76 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7604 €
10 pcs.
3.3915 €
100 pcs.
2.8679 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connector, 1836095, PHOENIX
PCB plug, rated current: 8 A, rated voltage (III/2): 320 V, number of poles: 4, grid dimension: 5.08 mm, connection type: screw connection with tension sleeve, color: green, contact surface: tin.
Technical specifications
| Connection | screw connection | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | socket header | |
| Additional parts | unequipped | |
| Colour | green | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 8 A | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Grid | 5.08 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
