1804742 | Phoenix Contact
Pin header, 8 pole, pitch 7.62 mm, straight, green, 1804742
Unit Price (€ / pc.)
6.2356 € *
Available: 0 pcs.
Leadtime: On Request **
Pin headers and multipole connectors, type Phoenix Contact POWER COMBICON.
Rated voltage/rated current: 400V/20A (IEC/DIN, VDE), 300V/20A (CSA), 300V/35A (CUL, UL).

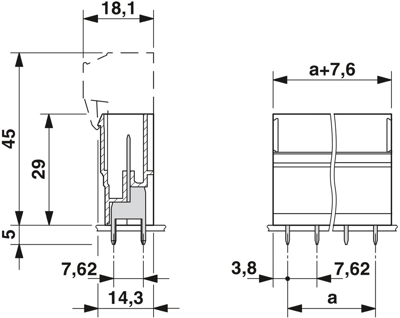

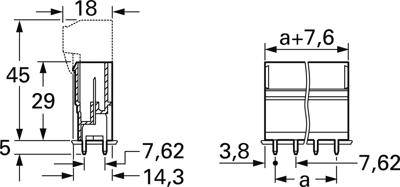

Pin headers, straight, 7.62 mm grid, type PCV 4/..-G-7,62.
Technical attributes (type, number of poles): PCV 4/8-G-7,62, 8-pole
Technical specifications
| Connection | solder connection | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | green | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 630 V | |
| Rated current | 20 A | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Grid | 7.62 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
