1803332 | Phoenix Contact

Pin header, 8 pole, pitch 3.81 mm, angled, green, 1803332

Order No.: 63P2285
EAN: 4017918045647
MPN:
1803332
MC 1,5/ 8-G-3,81
Series: COMBICON MC 1,5

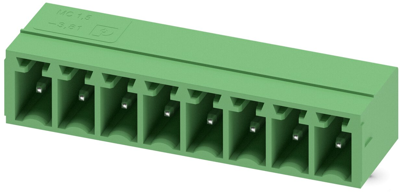

1803332 Phoenix Contact PCB Connection Systems Image 1
1803332 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.9754 € *
Available: 48 pcs.
Available in 10 days: 2,393 pcs. - if ordered today
Total Price:
1.98 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.9754 €

PCB Connector, 1803332, PHOENIX

Printed circuit board base strip, rated current: 8 A, rated voltage (III/2): 160 V, number of poles: 8, grid spacing: 3.81 mm, color: green, contact surface: tin, mounting: wave soldering.

Technical specifications
Filter Property Value
contact surface tin-plated
Version pin header
Grid 3.81 mm
Contact type pin
Connection solder connection
Colour green
Connection plating tin-plated
Type of locking No
Rated voltage 160 V
Additional parts equipped
Number of rows 1
Pin number 8 pole
Orientation angled
Rated current 8 A
Logistics
Property Value
Country of origin DE
Customs tariff number 85366930
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
