1803316 | Phoenix Contact

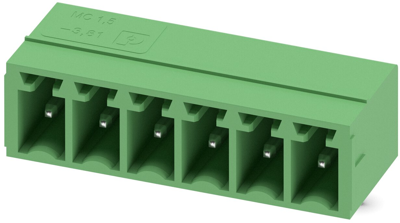

Pin header, 6 pole, pitch 3.81 mm, angled, green, 1803316
Order No.: 63P2181
EAN: 4017918045623
MPN:
1803316
MC 1,5/ 6-G-3,81
Unit Price (€ / pc.)
2.1420 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
2.14 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1420 €
10 pcs.
1.9397 €
100 pcs.
1.6422 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connector, 1803316, PHOENIX
Printed circuit board base strip, rated current: 8 A, rated voltage (III/2): 160 V, number of poles: 6, grid spacing: 3.81 mm, color: green, contact surface: tin, mounting: wave soldering.
Technical specifications
| Connection | solder connection | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | unequipped | |
| Colour | green | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 160 V | |
| Rated current | 8 A | |
| Orientation | angled | |
| Pin number | 6 pole | |
| Grid | 3.81 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
