1731617 | Phoenix Contact

Pin header, 15 pole, pitch 3.5 mm, straight, green, 1731617

Order No.: 51F7386
EAN: 4046356159227
MPN:
1731617
MCV 1,5/15-G-3,5-RN
Series: MCV

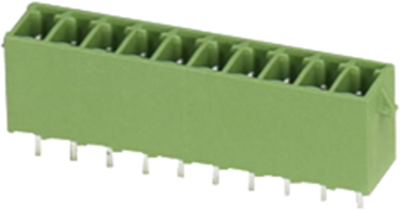

1731617 Phoenix Contact PCB Connection Systems Image 1
1731617 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
5.0456 € *
Available in 10 days: 445 pcs. - if ordered today
Total Price:
5.05 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0456 €
10 pcs.
4.6529 €
50 pcs.
4.2364 €
100 pcs.
3.8080 €
*incl. VAT plus shipping costs
Subject to prior sale

Base housing with click-and-lock flange, type MCV1,5.

Vertical conductor insertion.

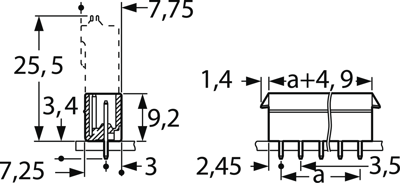

Technical attributes (type, number of poles, dimension a): MCV1,5/15-G-3,5-RN, 15-pole, 49 mm

Technical specifications
Grid 3.5 mm
Version pin header
contact surface tin-plated
Connection plating tin-plated
Rated current 8 A
Additional parts equipped
Contact type pin
Rated voltage 160 V
Colour green
Number of rows 1
Pin number 15 pole
Type of locking Yes
Orientation straight
Connection solder connection
Logistics
Country of origin DE
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
