1731549 | Phoenix Contact

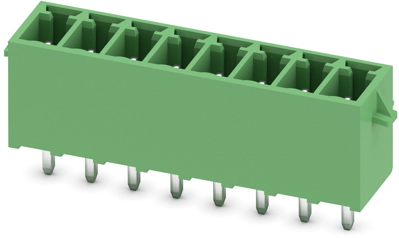

Pin header, 8 pole, pitch 3.5 mm, straight, green, 1731549
Order No.: 51F7372
EAN: 4046356158985
MPN:
1731549
MCV 1,5/8-G-3,5-RN
Series: COMBICON Control FMC1,5
Unit Price (€ / pc.)
2.8798 € *
Available: 40 pcs.
Leadtime: 2 Weeks **
Total Price:
2.88 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8798 €
10 pcs.
2.5942 €
100 pcs.
2.2134 €
*incl. VAT plus shipping costs
**Subject to prior sale
Base housing with click-and-lock flange, type MCV1,5.
Vertical conductor insertion.

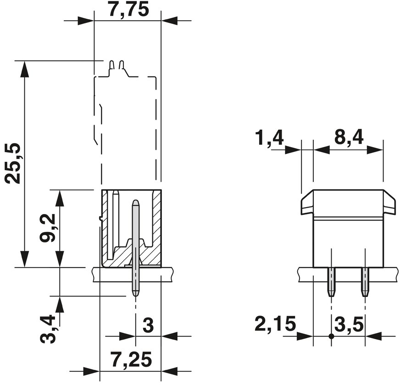

Technical attributes (type, number of poles, dimension a): MCV1,5/8-G-3,5-RN, 8-pole, 24.5 mm
Technical specifications
Connection | solder connection | |
Connection plating | tin-plated | |
Number of rows | 1 | |
Version | pin header | |
Additional parts | unequipped | |
Colour | green | |
Contact type | pin | |
contact surface | tin-plated | |
Rated voltage | 160 V | |
Rated current | 8 A | |
Orientation | straight | |
Pin number | 8 pole | |
Grid | 3.5 mm | |
Type of locking | Yes |
Download
Logistics
Country of origin | DE |
Customs tariff number | 85366930 |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
