1731604 | Phoenix Contact

Pin header, 14 pole, pitch 3.5 mm, straight, green, 1731604

Order No.: 51F7384
EAN: 4046356159210
MPN:
1731604
MCV 1,5/14-G-3,5-RN
Series: MCV

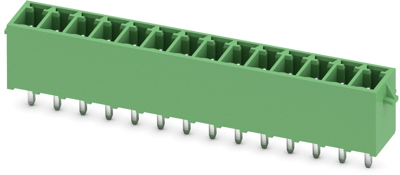

1731604 Phoenix Contact PCB Connection Systems Image 1
1731604 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
4.7124 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
4.71 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7124 €
10 pcs.
4.3435 €
50 pcs.
3.9508 €
100 pcs.
3.5462 €
*incl. VAT plus shipping costs
Subject to prior sale

Base housing with click-and-lock flange, type MCV1,5.

Vertical conductor insertion.

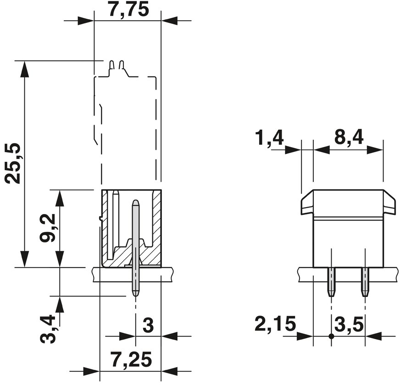

Technical attributes (type, number of poles, dimension a): MCV1,5/14-G-3,5-RN, 14-pole, 45.5 mm

Technical specifications
Colour green
Type of locking Yes
contact surface tin-plated
Rated current 8 A
Grid 3.5 mm
Connection plating tin-plated
Pin number 14 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder connection
Contact type pin
Rated voltage 160 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
