1731594 | Phoenix Contact

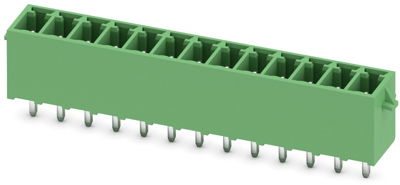

Pin header, 13 pole, pitch 3.5 mm, straight, green, 1731594

Order No.: 51F7382
EAN: 4046356159203
MPN:
1731594
MCV 1,5/13-G-3,5-RN
Series: MCV
1731594 Phoenix Contact PCB Connection Systems Image 1
1731594 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
4.3792 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
4.38 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3792 €
10 pcs.
4.0341 €
50 pcs.
3.6771 €
100 pcs.
3.3082 €
*incl. VAT plus shipping costs
Subject to prior sale

Base housing with click-and-lock flange, type MCV1,5.

Vertical conductor insertion.

Technical attributes (type, number of poles, dimension a): MCV1,5/13-G-3,5-RN, 13-pole, 42 mm

Technical specifications
Filter Property Value
Contact type pin
Type of locking Yes
Colour green
Number of rows 1
Grid 3.5 mm
Rated voltage 160 V
Pin number 13 pole
Connection plating tin-plated
Version pin header
Additional parts equipped
Connection solder connection
Rated current 8 A
Orientation straight
contact surface tin-plated
Logistics
Property Value
Customs tariff number 85366930
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
