1731536 | Phoenix Contact

Pin header, 7 pole, pitch 3.5 mm, straight, green, 1731536

Order No.: 51F7370
EAN: 4046356158978
MPN:
1731536
MCV 1,5/7-G-3,5-RN
Series: MCV

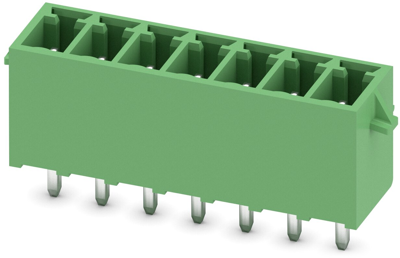

1731536 Phoenix Contact PCB Connection Systems Image 1
1731536 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
2.3800 € *
Available: 48 pcs.
Available in 10 days: 37 pcs.
Leadtime: 2 Weeks **
Total Price:
2.38 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3800 €
10 pcs.
2.1777 €
50 pcs.
1.9873 €
100 pcs.
1.7969 €
*incl. VAT plus shipping costs
**Subject to prior sale

Base housing with click-and-lock flange, type MCV1,5.

Vertical conductor insertion.

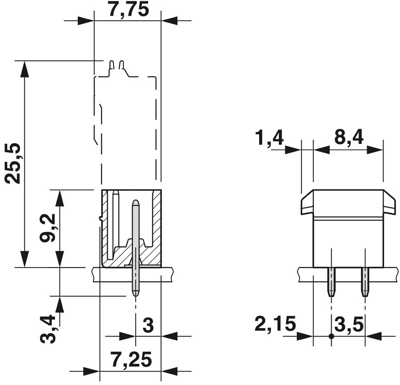

Technical attributes (type, number of poles, dimension a): MCV1,5/7-G-3,5-RN, 7-pole, 21 mm

Technical specifications
Connection Lötanschluss
Connection plating verzinnt
Number of rows 1
Version Stiftleiste
Additional parts bestückt
Colour grün
Contact type Stift
contact surface verzinnt
Rated voltage 160 V
Rated current 8 A
Orientation gerade
Pin number 7-polig
Grid 3.5 mm
Type of locking Ja
Logistics
Country of origin DE
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
