1731484 | Phoenix Contact

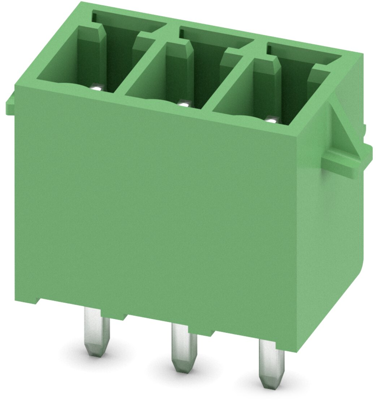

Pin header, 3 pole, pitch 3.5 mm, straight, green, 1731484

Order No.: 51F7362
EAN: 4046356158930
MPN:
1731484
MCV 1,5/3-G-3,5-RN
Series: MCV
1731484 Phoenix Contact PCB Connection Systems Image 1
1731484 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.0829 € *
Available: 58 pcs.
Total Price:
1.08 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0829 €
100 pcs.
0.9520 €
200 pcs.
0.8330 €
*incl. VAT plus shipping costs
Subject to prior sale

Base housing with click-and-lock flange, type MCV1,5.

Vertical conductor insertion.

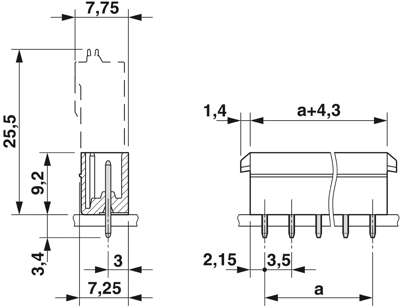

Technical attributes (type, number of poles, dimension a): MCV1,5/3-G-3,5-RN, 3-pole, 7.0 mm

Technical specifications
Colour green
Type of locking Yes
contact surface tin-plated
Rated current 8 A
Grid 3.5 mm
Connection plating tin-plated
Pin number 3 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder connection
Contact type pin
Rated voltage 160 V
Number of rows 1
Logistics
Country of origin DE
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
