1439171 | Phoenix Contact
Female connector, 60 pole, pitch 0.635 mm, angled, black, 1439171
Unit Price (€ / pc.)
5.4502 € *
Available in 5 Days: 4,500 pcs. - if ordered today

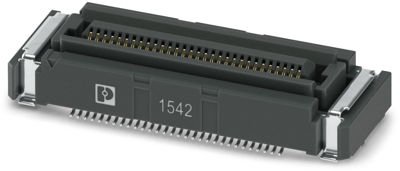

SMD female connector, 1439171, Phoenix Contact
SMD female connector, nominal current: 0.5 A, Test voltage: 500 V AC, number of positions: 60, pitch: 0.635 mm, color: black, contact surface: Gold, contact connection type: Socket, mounting: SMD soldering.
Features
- Design-in support during device development using MCAD/ECAD data and a free sample service
- Easy mating with integrated keyways and tolerance compensation for error-free production
- Absorption of tolerances and mechanical stresses for a secure connection due to the floating function
- Unique combination: tolerance compensation through floating and very high data transmission possible in one connector
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Connection | PCB connection | |
| Rated voltage | 125 V | |
| Orientation | angled | |
| contact surface | gold-plated | |
| Breakable | No | |
| Version | female connector | |
| Connection plating | tin-plated | |
| Pin number | 60 pole | |
| Contact type | socket | |
| Grid | 0.635 mm | |
| Rated current | 0.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
