1377306 | Phoenix Contact
Male connector, 100 pole, pitch 1.27 mm, angled, 1377306
Unit Price (€ / pc.)
5.0813 € *
Available: 560 pcs.
Leadtime: On Request **
Total Price:
5.08 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0813 €
10 pcs.
4.7362 €
*incl. VAT plus shipping costs
**Subject to prior sale

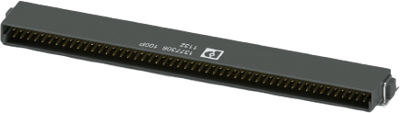

SMD male connector, 1377306, Phoenix Contact
SMD male connector, Nominal current: 2 A, Test voltage: 500 V AC, Number of positions: 100, Pitch: 1.27 mm, Color: black, Contact surface: Gold, Type of contact: Pin, Mounting: SMD soldering.
Features
- The first high-speed data transmission at up to 28 Gbps using the established market standard, opens up new design possibilities
- Time savings during the development process with customer-specific simulations for data integrity
- Gold-plated contact points enable long-term stable signal transmission
Technical specifications
| Connection | solder pin | |
| Number of rows | 2 | |
| Version | male connector | |
| Additional parts | equipped | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Rated current | 2 A | |
| Orientation | angled | |
| Pin number | 100 pole | |
| Grid | 1.27 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
