1377301 | Phoenix Contact

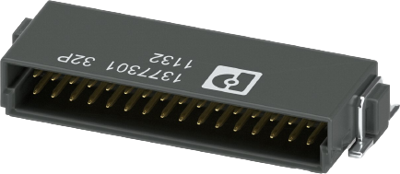

Male connector, 32 pole, pitch 1.27 mm, angled, 1377301

Order No.: 63P3768
EAN: 4063151744205
MPN:
1377301
FR 1,27/ 32-MH
Series: FINEPITCH
1377301 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
1.5470 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
866.32 € *
*incl. VAT plus shipping costs
Subject to prior sale
560 pcs.
1.5470 €

SMD male connector, 1377301, Phoenix Contact

SMD male connector, Nominal current: 2 A, Test voltage: 500 V AC, Number of positions: 32, Pitch: 1.27 mm, Color: black, Contact surface: Gold, Type of contact: Pin, Mounting: SMD soldering.

Features

  • The first high-speed data transmission at up to 28 Gbps using the established market standard, opens up new design possibilities
  • Time savings during the development process with customer-specific simulations for data integrity
  • Gold-plated contact points enable long-term stable signal transmission
Technical specifications
Filter Property Value
Version male connector
Rated current 2 A
contact surface gold-plated
Contact type pin
Additional parts equipped
Pin number 32 pole
Number of rows 2
Orientation angled
Grid 1.27 mm
Connection solder pin
Logistics
Property Value
Customs tariff number 85366930
Country of origin CN
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
