1377300 | Phoenix Contact

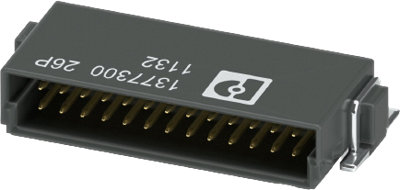

Male connector, 26 pole, pitch 1.27 mm, angled, 1377300

Order No.: 63P3764
EAN: 4063151744137
MPN:
1377300
FR 1,27/ 26-MH
Series: FINEPITCH
1377300 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
1.3685 € *
Available in 10 days: 6,720 pcs. - if ordered today
Total Price:
766.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
560 pcs.
1.3685 €

SMD male connector, 1377300, Phoenix Contact

SMD male connector, Nominal current: 2 A, Test voltage: 500 V AC, Number of positions: 26, Pitch: 1.27 mm, Color: black, Contact surface: Gold, Type of contact: Pin, Mounting: SMD soldering.

Features

  • The first high-speed data transmission at up to 28 Gbps using the established market standard, opens up new design possibilities
  • Time savings during the development process with customer-specific simulations for data integrity
  • Gold-plated contact points enable long-term stable signal transmission
Technical specifications
Filter Property Value
Contact type pin
Pin number 26 pole
Grid 1.27 mm
Version male connector
Connection solder pin
Rated current 2 A
Orientation angled
Number of rows 2
contact surface gold-plated
Additional parts equipped
Logistics
Property Value
Customs tariff number 85366930
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
