1377299 | Phoenix Contact

Male connector, 20 pole, pitch 1.27 mm, angled, 1377299

Order No.: 63P3763
EAN: 4063151744120
MPN:
1377299
FR 1,27/ 20-MH
Series: FINEPITCH
1377299 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
1.5351 € *
Available in 5 Days: 1,120 pcs. - if ordered today
Total Price:
859.66 € *
*incl. VAT plus shipping costs
Subject to prior sale
560 pcs.
1.5351 €

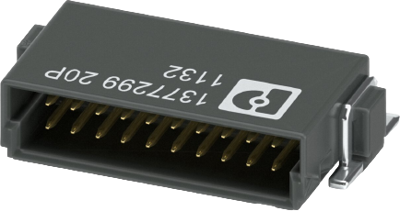

SMD male connector, 1377299, Phoenix Contact

SMD male connector, Nominal current: 2 A, Test voltage: 500 V AC, Number of positions: 20, Pitch: 1.27 mm, Color: black, Contact surface: Gold, Type of contact: Pin, Mounting: SMD soldering.

Features

  • The first high-speed data transmission at up to 28 Gbps using the established market standard, opens up new design possibilities
  • Time savings during the development process with customer-specific simulations for data integrity
  • Gold-plated contact points enable long-term stable signal transmission
Technical specifications
Filter Property Value
Grid 1.27 mm
Additional parts equipped
Connection solder pin
Version male connector
contact surface gold-plated
Orientation angled
Rated current 2 A
Number of rows 2
Contact type pin
Pin number 20 pole
Logistics
Property Value
Customs tariff number 85366930
Country of origin CN
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
