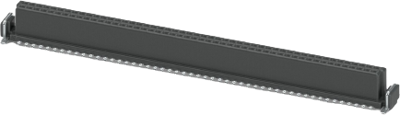

1374037 | Phoenix Contact

Female connector, 100 pole, pitch 1.27 mm, straight, 1374037

Order No.: 63P3701
EAN: 4063151734176
MPN:
1374037
FR 1,27/100-FV 6,25
Series: FINEPITCH
1374037 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
7.3423 € *
Available: 0 pcs.
Available in 10 days: 840 pcs.
Leadtime: 2 Weeks **
Total Price:
7.34 € *
Price list
Quantity
Price per unit*
1 pcs.
7.3423 €
10 pcs.
6.5926 €
50 pcs.
5.8191 €
*incl. VAT plus shipping costs
**Subject to prior sale

SMD female connector, 1374037, Phoenix Contact

SMD female connector, Nominal current: 2.2 A, Test voltage: 840 V AC, Number of positions: 100, Pitch: 1.27 mm, Color: black, Contact surface: Gold, Type of contact: Socket, Mounting: SMD soldering.

Features

  • The first high-speed data transmission at up to 28 Gbps using the established market standard, opens up new design possibilities
  • Time savings during the development process with customer-specific simulations for data integrity
  • Gold-plated contact points enable long-term stable signal transmission
Technical specifications
Pin number 100 pole
Rated current 2.2 A
Additional parts equipped
Number of rows 2
Connection solder pin
Grid 1.27 mm
Contact type socket
Orientation straight
Version female connector
contact surface gold-plated
Logistics
Customs tariff number 85366930
Country of origin CN
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
