1232901 | Phoenix Contact

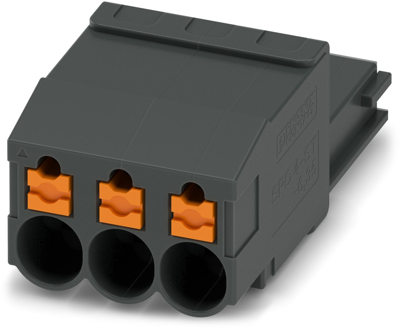

Socket header, 3 pole, pitch 6.35 mm, straight, black/orange, 1232901
Unit Price (€ / pc.)
3.3796 € *
Available: 50 pcs.
Available in 5 Days: 150 pcs. - if ordered today
PCB connector, 1232901, Phoenix Contact
PCB connector, nominal cross section: 4 mm², color: black, nominal current: 24 A, rated voltage (III/2): 1000 V, contact surface: Tin, contact connection type: Socket, number of rows: 1, number of positions: 3, product range: SPC 4/..-ST, pitch: 6.35 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: COMBICON PC 4, locking: without.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Optimized for tight installation situations: operation and conductor connection from one direction
- 600 V UL approval in the smallest of dimensions
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black/orange | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | push-in spring connection | |
| Rated voltage | 1 kV | |
| Orientation | straight | |
| Type of locking | No | |
| contact surface | tin-plated | |
| Breakable | Yes | |
| Version | socket header | |
| Pin number | 3 pole | |
| Contact type | socket | |
| Grid | 6.35 mm | |
| Rated current | 24 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
