1016522 | Phoenix Contact

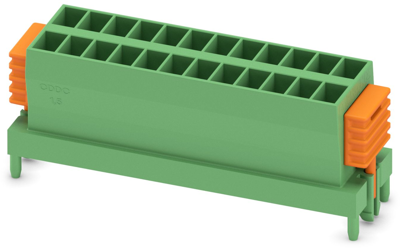

Direct connector, 12 pole, pitch 3.5 mm, straight, green, 1016522
Unit Price (€ / pc.)
4.2840 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
4.28 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2840 €
10 pcs.
3.9746 €
50 pcs.
3.6652 €
100 pcs.
3.3320 €
*incl. VAT plus shipping costs
Subject to prior sale
Direct connector, 1016522, Phoenix Contact
PCB direct plug, nominal cross section: 1.5 mm2, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, number of potentials: 24, number of rows: 2, number of positions: 12, number of connections: 24, product range: CDDC 1,5/..-PV, pitch: 3.5 mm, connection method: Crimp connection, mounting: SKEDD - Direct plug-in technology, conductor/PCB connection direction: 90 °, pin layout: Linear pinning, plug-in system: SKEDD, locking: Snap-in locking, mounting method: Latching flange, type of packaging: packed in cardboard.
Features
- SKEDD direct plug-in technology enables flexible positioning on the PCB
- Reduced component and process costs: simple insertion by hand and vibration-resistant connection
- Contacts arranged in a double row enable high packing density in a compact area
- Wide range of applications, thanks to suitability for PCBs with chemically tin-plated or Hot Air Leveling (HAL) surface
- Cost-effective connection of crimped conductors in large quantities
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Colour | green | |
| Type of locking | Yes | |
| Pin number | 12 pole | |
| Connection | crimp connection | |
| Rated voltage | 160 V | |
| Contact type | socket | |
| Rated current | 8 A | |
| contact surface | tin-plated | |
| Orientation | straight | |
| Grid | 3.5 mm | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
