1016272 | Phoenix Contact

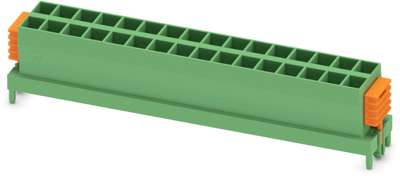

Direct connector, 16 pole, pitch 5 mm, straight, green, 1016272
Unit Price (€ / pc.)
5.5454 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
5.55 € *
Price list
Quantity
Price per unit*
1 pcs.
5.5454 €
10 pcs.
5.1646 €
50 pcs.
4.7481 €
100 pcs.
4.3197 €
*incl. VAT plus shipping costs
**Subject to prior sale
Direct connector, 1016272, Phoenix Contact
PCB direct plug, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, number of potentials: 32, number of rows: 2, number of positions: 16, number of connections: 32, product range: CDDC 2,5/..-PV, pitch: 5 mm, connection method: Crimp connection, mounting: SKEDD - Direct plug-in technology, conductor/PCB connection direction: 90 °, plug-in system: SKEDD, locking: Snap-in locking, mounting method: Latching flange, type of packaging: packed in cardboard.
Features
- SKEDD direct plug-in technology enables flexible positioning on the PCB
- Reduced component and process costs: simple insertion by hand and vibration-resistant connection
- Contacts arranged in a double row enable high packing density in a compact area
- Wide range of applications, thanks to suitability for PCBs with chemically tin-plated or Hot Air Leveling (HAL) surface
- Cost-effective connection of crimped conductors in large quantities
Technical specifications
| Number of rows | 2 | |
| Rated voltage | 320 V | |
| Contact type | socket | |
| Type of locking | Yes | |
| Connection | crimp connection | |
| contact surface | tin-plated | |
| Pin number | 16 pole | |
| Grid | 5 mm | |
| Orientation | straight | |
| Colour | green | |
| Version | socket header | |
| Rated current | 12 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85472000 |
Compliance
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
