1586511 | Phoenix Contact

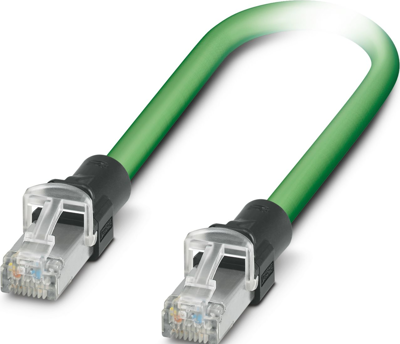

Patch cable, RJ45 plug, straight to RJ45 plug, straight, Cat 5, SF/TQ, PUR, 25 m, green, 1586511
Order No.: 62P7229
EAN: 4067923141834
MPN:
1586511
NBC-R4ACS/25,0-93M/R4ACS
Unit Price (€ / pc.)
110.2535 € *
Standard delivery time from the manufacturer is: 6 Weeks
Patch cable, 1586511, Phoenix Contact
Patch cable, cable length: 25 m, number of positions: 4, 100 Mbps, CAT5, connection cross section: AWG 23- 22, PROFINET
Features
- Perfect for industrial applications
- PUR cable for moving applications (bend)
- Ideal EMC properties, thanks to 360° shielding
- Simultaneous power transmission with PoE++
- Resistant to shock and vibrations, thanks to robust molding
- High-speed data transmission with up to 100 Mbps (CAT5)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | patch cable | |
| Cable type | SF/TQ | |
| Cable length | 25 m | |
| Connection (2) | RJ45 plug, straight | |
| Halogen free | Yes | |
| Category | Cat 5 | |
| Degree of protection (IP) | IP20 | |
| Detent lever protection available | Yes | |
| Colour | green | |
| Material | PUR | |
| Connection (1) | RJ45 plug, straight | |
| AWG cross-section | AWG 22 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | PL |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
